Light Rail System

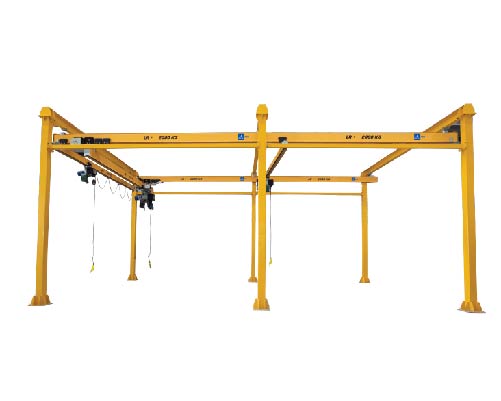

The iCrane LR+ System is a comprehensive solution for all your industrial and storage needs. This technologically advanced and efficient modular machine was conceived, designed and built by experienced experts and is a patented product of Indef.
Its advanced design and validation software tools are a result of contemporary production technology. Suitable for both monorail and bi-rail configurations, it can also be used as an underslung monorail with manual or electrically operated travel.
The iCrane LR+ System can –
- Lift loads vertically using lifting equipment like an electric chain hoist or other such products fit for the job.
- Enable cross travel of the load using a hoist mounted on an electrically or manually operated trolley that moves along the main track of the light crane.
- Enable longer travel of the load using manual or electrical trolleys that slide on the light crane’s track.
Product Features
- Equipped with the following features, the joint systems used in the LR+ beams ensure maximum functionality and reliability. .
- Perfectly aligned profiles with precision centers given by frustum conic compasses. .
- Easy accessibility to the fixing screw allows for easy fitting and inspection. .
- The use of binx nuts and auto-locking ensures protection against unscrewing. .
- Protection from corrosion using bolted and galvanised joints. .
- Profiles 150, 210 and 270 can cover a load range up to 2000kgs which maximises suspension distance. .
- A flat four pole ‘bus bar’ with a block plug protects against the risk of contact by accident or flexible festoon line cable systems with trolleys positioned in the LR+’s beam..
Operating Range
- SWL UP TO: 2 TONS (2000 kg) .
- Wheelbase Suspension: UP TO 10 METERS.
