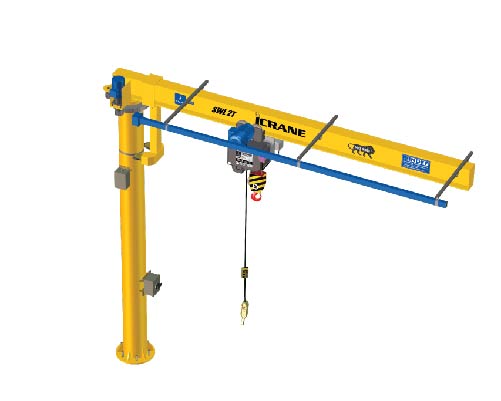

JIB Crane
Equipped with standing column and a rotating boom, the Jib Crane is predominantly used for the loading and unloading of material onto machines & testing beds, for maintenance purposes and to cover a circular area of work.
Indef offers Jib Cranes with a rotating angle of 360° or 270° that can be operated manually, electrically or as a combination of both. We also offer wall mounted variants.
Our crane is recommended for M5/Fem 2M duty application and can also be used for outdoor and flame-proof work.
Generally used with a chain hoist and chain pulley blocks, a Jib Crane armed with a wire rope hoist is only used for certain specific application. We offer our cranes with a Safe Working Load of up to 3.2T, a height of lift of 5 meters and a boom length of 7 meters. Our light weight design and correct loading data allows for optimisation of the concrete foundation.
A complete Jib crane consists of –
- 1 Column
- 1 Boom
- 1 Reaction Arm
- 1 set of Base Plate with Foundation Hardware
- 1 Hoist with Trolley
Product Features
- The crane is available with a combination of manual and electrical operation. .
- The product can be provided with a light rail boom to support an SWL of up to 1T. .
- An adjustment for the rotation gearbox mounting provides proper torque transmission. .
- A slip ring helps with continuous 360° rotation. .
- An adjustment for the king post mounting bearing housing allows smooth rotation. .
- A handle with a sling at the end of the boom assists with manual rotation..
Operating Range
- SWL UP TO:5 TONS (5000 kg) .
- JIB ARM NOMINAL LENGTH: UP TO 10 METERS .
- JIB ARM ROTATION: MANUAL / MOTORIZED .
- JIB MOUNTING: COLUMN / WALL .
- HOISTING/ TRAVEL SPEED : UAL SPEED OFFERED AS STANDARD VFD (Optional).
