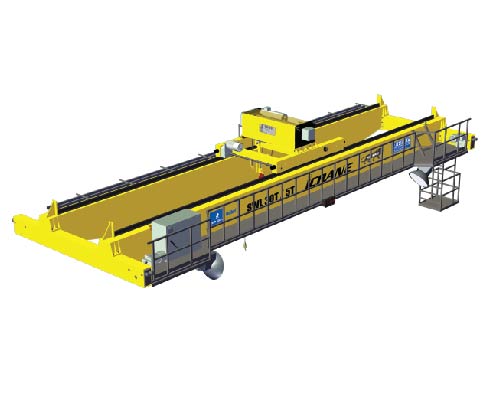

DGEOT Crane


The Double Girder EOT crane is armed with 2 cross beams or girders on which the crab/trolley operates using a cross movement. These cranes are predominantly used for production duty and wherever the Safe Working Load demand is medium to heavy.

Our product ranges from 50T to 70T with a span up to 35 meters. The optimised modular design is compliant with International FEM, ISO and IS standards with a circular variant also available.

A complete DGEOT crane consists of –

  • 2 Girder
  • 2 End Carriage Assemblies
  • 1 Crab/Trolley
  • 1 set of Platforms
  • 1 Electrical Panel with Field Cables

Product Features

  • SWL Range varies from 5T to 70T with a lift height of 24 meters . .
  • Low headroom or raised up crane as per the shed size . .
  • Available with differing speeds for travel and hoist motion . .
  • The welded box girder is designed for maximum rigidity and optimal deadweight . .
  • Effortlessly moving pendant on the independent C-Rail track . .
  • End carriages are equipped with a jacking pad, sweeper plate and derailment guard as standard features to maximise safety . .
  • Steel core wire rope with a minimum FOS of 5 . .
  • Spherical roller bearings used as travel wheels . .
  • Geared brake motor directly coupled to the wheel..

Operating Range

  • Our product ranges from 50T to 70T with a span up to 35 meters..
